GD6

6" Waterless Trap Seal

Name: GD6 - 6" Waterless Trap Seal
Brand: Green Drain
SKU: GD6

Fits 6" (149-157 mm) drain outlets. Flow rates exceeding 550 L/min. Drop-in install, no tools required.

€49,95

Excl. VAT. Ships from our EU warehouse in Denmark.

Pipe Size 6" (149-157mm)

Flow Rate ≥550 L/min

Install Time Under 60 Seconds

Request a Quote Contact our EMEA team

For hospitals and clinics: GD-MD, the medical version of this size. Class I medical device under MDR (EU) 2017/745.

cUPC Listed

CE/ETA Certified

Ships from Denmark

Inspect the seal around 6 to 12 months in service to confirm the silicone is still intact and sealing properly. Replace only as needed: high-use drains wear sooner, while low-use drains often last a year or longer.

Cutaway view of a 6-inch floor drain and its trap

How it works.

Green Drain is a one-way valve for your floor drain. Water flows down and out. Nothing comes back up.

Inside sits a soft silicone valve. Running water pushes it open; the moment the water stops, it closes and seals tight against sewer gas, odors, and pests. Because it seals with silicone instead of water, it never dries out the way an ordinary trap can, even when the drain goes weeks without use.

It fits 6-inch drains, 149 to 157 mm, and drops in by hand. No tools, no plumber, installed in seconds.

Will it fit? Measure first

Measure the pipe. Not the grate, not the bowl.

Lift the grate. At the bottom of the drain body is a round pipe opening. Measured across its center from inside wall to inside wall, that is the only number that matters. The GD6 seats in a pipe of 149 to 157 mm (6 in.). If the opening is oval, use the smaller reading. Outside that range, another size fits: see all sizes.

Drain in section with the grate highlighted: not the part to measure

Don't measure the grate

The grate is the cover you walk on. It sits on top of the drain body and is wider than the pipe underneath, so its width tells you nothing about fit.

Drain in section with the bowl highlighted: not the part to measure

Don't measure the bowl

The bowl is the basin under the grate that funnels water down. It is wider than the pipe too. The Green Drain does not sit here.

Drain in section with the pipe highlighted: the part to measure

Measure the pipe

At the bottom of the bowl is the round pipe opening. This is where the Green Drain seats, so this is the width to measure. Wipe it clean, then measure inside wall to inside wall.

Floor drain from above with the grate off: a tape across the pipe opening from A to B — **Measure A to B.** The pipe opening at the bottom of the bowl.

Full installation guide: how to measure, choose a size and install.

Common drains it fits

GD6 installed in a heavy-duty round floor drain — Heavy-duty round

GD6 installed in a sanitary floor drain — Sanitary

GD6 installed in a trench drain — Trench

Not seeing your drain? If its outlet is a round pipe in the GD6's range, it fits. The cover on top does not matter; the pipe under it does. Remove any basket or strainer first.

GD6 in section with water flowing down through the open skirt — **Water flowing.** The silicone skirt opens and water passes.

GD6 in section with the skirt closed and sewer gas held below — **Flow stopped.** The skirt closes. Air, odor and insects stay below.

The valve, two states

One-way. Opens for water going down, closes when the flow stops. No water to top up, no power, nothing to prime.

Inspect the seal around 6 to 12 months in service and replace only as needed.

Installs in under 60 seconds. No tools.

Step 1: the grate lifted off a floor drain, shown in section

Lift the grate

Most grates lift straight out by hand. Some are held by one center screw; back it out, then lift.

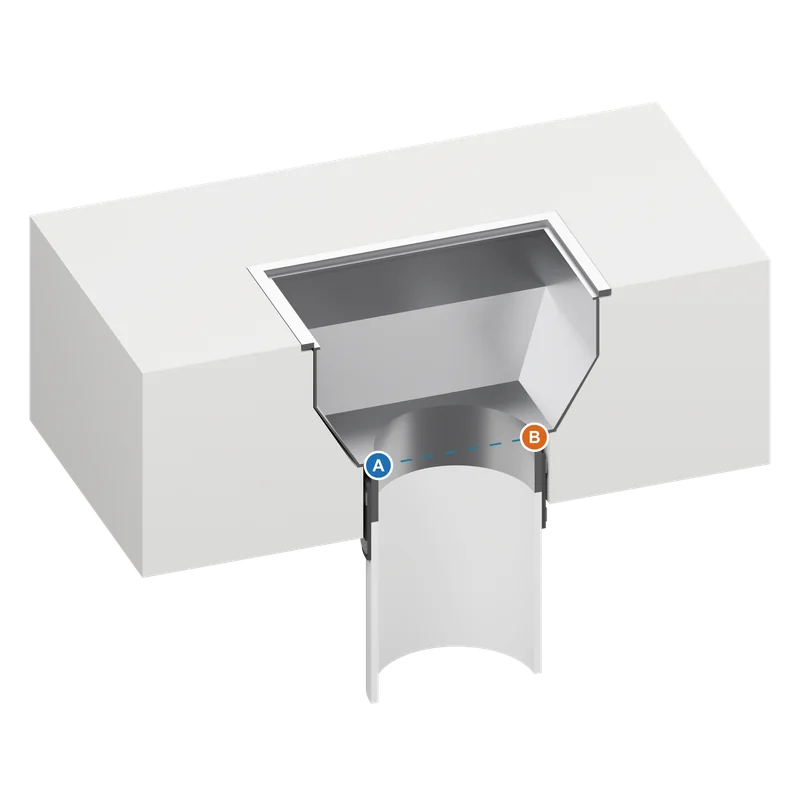

Step 2: measuring the pipe opening at the bottom of the drain, inside wall to inside wall

Measure the opening

Measure the pipe opening at the bottom of the bowl, inside wall to inside wall. The GD6 fits 149 to 157 mm (6 in.).

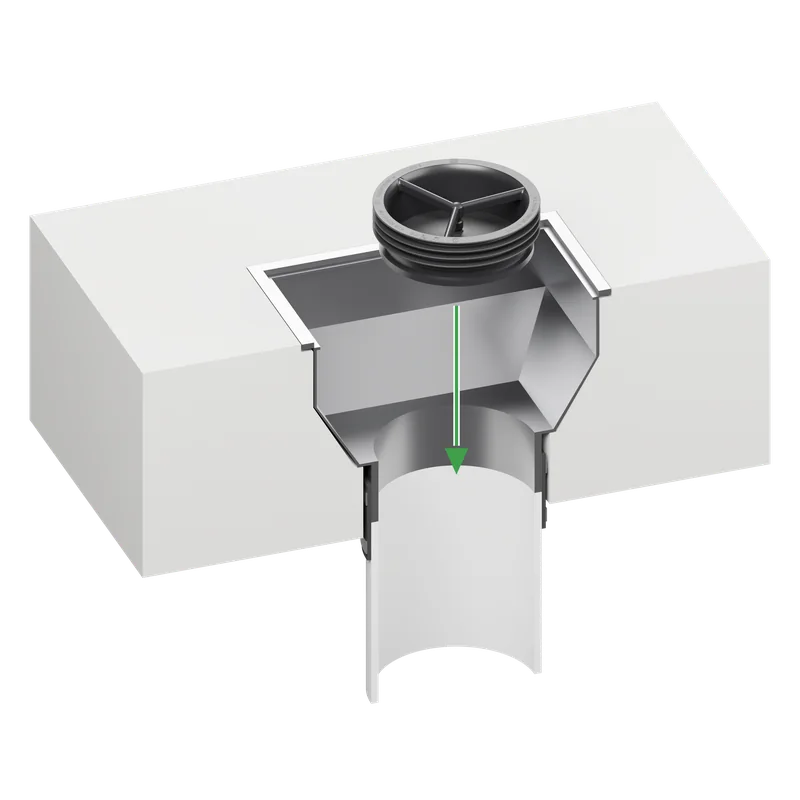

Step 3: the GD6 being pressed down into the pipe opening

Press gently to seat

Recess 2 to 4 inches below the pipe top. The silicone gasket creates a snug seal against the pipe walls.

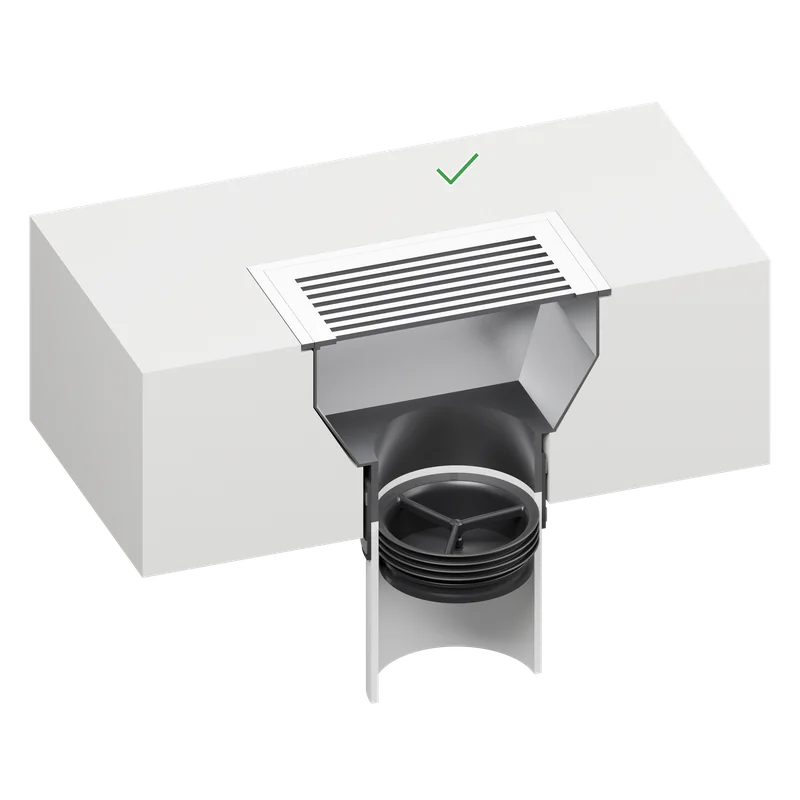

Step 4: the grate back in place over the seated GD6

Replace the grate

Put the grate back. Done. Full coverage for your largest drains.

Maximum capacity. Proven performance.

The GD6 is the largest waterless trap seal in the product line. Independently tested and certified.

≥550 L/min Flow Rate (Level U) Maximum-capacity industrial drainage.

6" Largest Model Covers 149-157 mm pipe openings.

200 Pa Odour Tightness CE/ETA certified gas-tight seal.

>2,500 Cycle Life ASSE 1072 durability tested.

For Architects & Engineers

Specify Green Drain in your next project.

Download the Revit family set for every Green Drain model, and find us listed in BSD SpecLink and MasterSpec.

Download Revit Families View full specifications →

Technical Specifications

Model	GD6
Pipe Size	6" (149-157 mm)
Height	50 mm
Housing Diameter (no gasket)	150.2 mm (5.400"), bottom 144.2 mm (5.677")
Housing with Gasket	159 mm (6.260") wide x 50.8 mm (1.462")
Housing Material	ABS Plastic
Valve Material	Silicone Rubber
Seal Material	Silicone Gasket
Flow Rate	≥550 L/min
Patents	Multiple US & international patents
